Introduction to Direct 2D: DirectWrite

In my previous installment of this series I was rebuilding a video game interface.  The interface resembled my target, but did not have any text.  How can I render text with Direct2D?  The answer is: DirectWrite.

What is DirectWrite?

DirectWrite is a GPU accelerated text rendering API that runs on top of Direct2D.  It originally shipped with Windows 7 and (as of the publishing date of this article) receives updates from Microsoft in the Windows 10 updates.  It is a great solution for rendering text within a DXGI based program.  Surfaces are generally dependent on the device.  DirectWrite resources are device independent.  There is no need to recreate them if the surface is lost.

Text Format

There is no default text style.  When text is being rendered it must have a definite font, style, size, and weight.  All of these text attributes are packaged in IDWriteTextFormat.  If you have worked with CSS think of IDWriteTextFormat as being a style for text.  In this interface you select the font face, weight, size, and text alignment.

TOF(_pWriteFactory->CreateTextFormat(
	TEXT("Segoe UI"),	//font family
	NULL,				//font collection
	DWRITE_FONT_WEIGHT_EXTRA_BOLD,
	DWRITE_FONT_STYLE_NORMAL,
	DWRITE_FONT_STRETCH_NORMAL,
	40.0f,
	TEXT("en-us"),
	&_pDefaultFont
));

Drawing Text

I will discuss two ways to render a text string: DrawText and DrawTextLayout.  The easier method of rendering a text string is to use ID2D1RenderTarget::DrawText.  This method accepts a text format object and a bounding rectangle.  It renders the text string at the location specified by the bounding rectangle.  It also accepts optional arguments that affect text layout and metrics.  This is the easiest of the two methods for rendering text, but it does not support having mixed styles within the same text string.  For that you would need to use a text block rendered in IDWriteTextLayout with ID2D1RenderTarget::DrawTextLayout (discussed in the next section).  Text rendered with this method will appear center-aligned to the bounding rectangle in which it is placed.

std::wstring test = TEXT("TEST");
D2D1_RECT_F textLocation{20,200,800,800};
_pRenderTarget->DrawTextW(
	test.c_str(), test.size(), //The text string and length
	_pDefaultFont.Get(),  //The font and style description
        &textLocation,  //The location in which to render the text
	_pBackgroundBrush.Get(),  //The brush to use on the text
	D2D1_DRAW_TEXT_OPTIONS_NONE,
	DWRITE_MEASURING_MODE_NATURAL
);

Text Layout

A text layout serves a similar function as a text block in that it is used for showing text.  The primary difference is that a text block has a one-to-one relationship with what is rendered on the screen and a text layout (through the IDWriteTextLayout interface) can be rendered several times.  If there were labels that were used repeatedly with the same text, they could be implemented by creating an IDWriteTextLayout object and rendering it several times.

//In InitDeviceIndependentResources()

std::wstring  stringResult = L"RESULT";
TOF(_pWriteFactory->CreateTextLayout(
	stringResult.c_str(),
	stringResult.size(),
	_pDefaultFont.Get(),
	400, 90,
	&_pTextLayout
));

//In OnRender()
_pRenderTarget->DrawTextLayout({ 00,0 }, _pTextLayout.Get(), _pBackgroundBrush.Get());

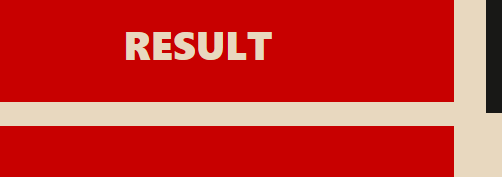

ID2D1AppWindow_DWrite_TextLayout
The resulting text from the above code

Unlike text rendered with ID2D1RenderTarget::DrawText, text rendered with IDWriteTextLayout can have styling applied to specific ranges of letters within the text.  If you need to mix text styles, use IDWriteTextLayout instead of using ID2D1RenderTarget::DrawText.  Create a TextLayout initially using a text format that covers the majority of the text in your layout.  Where deviations to your selected default should apply, create a DWRITE_TEXT_RANGE instance.  DWRITE_TEXT_RANGE contains the index of the starting character for the new text styling and the number of characters to which it should be applied.  Here are some of the functions for adjusting text styling.

When creating the IDWriteTextLayout a width and a height for the text area are needed.  Content rendered within this rectangle will automatically be wrapped.

std::wstring  stringResult = L"RESULT";
TOF(_pWriteFactory->CreateTextLayout(
	stringResult.c_str(),
	stringResult.size(),
	_pDefaultFont.Get(),
	400, 90,
	&_pTextLayout
));
DWRITE_TEXT_RANGE range{ 2,3 };
_pTextLayout->SetFontWeight(DWRITE_FONT_WEIGHT_EXTRA_LIGHT, range);

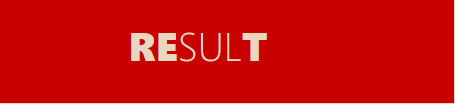

ID2D1AppWindow_DWrite_TextLayout_range

Applying DirectWrite to the Project Interface

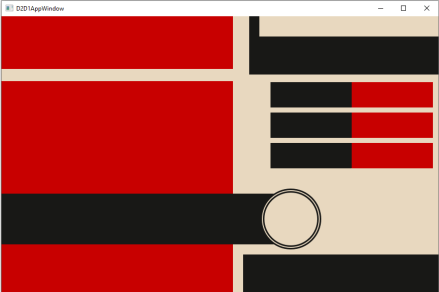

Where I left off, I had used Direct2D to render color to areas in which the interface will show information.

D2DAppWindow_sonicInterface

The next step is to apply text to the interface.  This interface will ultimately be used for performing batch processing of some media files.  The details and implementation of that processing are not shown here and are not important since this is only showing an interface.  The text populating the interface in this example is for demonstrative purposes only.

As shown in creating the interface, I am making a list of shape types to render.  In the call to OnRender() there is a case statement that will make the necessary calls depending on the next shape type in the list.  Between the last post and this one I changed my shape representation to have a shape base class and subclasses instead of having a single struct with the additional data needed packaged in unioned elements.

I am using  IDWriteTextLayout to render text instead of ID2D1RenderTarget::DrawText. Since DrawText centers the text within the bounding rectangle I could not get the layout to be what I wanted. Using IDwriteTextLayout in combination with layout options I was able to achieve the layout that I was looking for.

With the development of a hierarchy for the types of items that I am rendering, I am almost tempted at this point to just start defining a control hierarchy.  While that would have utility it may also distract from the concepts being shown here.  A control hierarchy may be written some other day.  For now the hierarchy I am using for shapes is shown is this code.

interface  IDispose {
	virtual void Dispose() = 0;
};

struct Shape: public IDispose {
	Shape() {}

	Shape(ShapeType shapeType, PaletteIndex paletteIndex)
	{
		this->shapeType = shapeType;
		this->paletteIndex = paletteIndex;
	}
	virtual void Dispose()
	{

	}
	std::wstring tag;
	ShapeType shapeType;
	PaletteIndex paletteIndex;
};

struct TextShape :public Shape {
	TextShape() {}
	TextShape(std::wstring text, D2D1_RECT_F location, TextStyle textStyle = TextStyle_Label, PaletteIndex palette = PaletteIndex_Primary,
		DWRITE_TEXT_ALIGNMENT textAlignment = DWRITE_TEXT_ALIGNMENT_LEADING,
		DWRITE_PARAGRAPH_ALIGNMENT paragraphAlignment = DWRITE_PARAGRAPH_ALIGNMENT_CENTER)
		:Shape(ShapeType_Text, palette)
	{
		this->text = text;
		this->location = location;
		this->textStyle = textStyle;
		this->paragraphAlignment = paragraphAlignment;
		this->textAlignment = textAlignment;
	}

	void Dispose() override
	{
		this->textLayout = nullptr;
	}
	std::wstring text;
	D2D1_RECT_F location;
	TextStyle textStyle;
	ComPtr textLayout;
	DWRITE_PARAGRAPH_ALIGNMENT paragraphAlignment;
	DWRITE_TEXT_ALIGNMENT textAlignment;

};

struct RectangleShape : public Shape {
	RectangleShape() :Shape(ShapeType_Rectangle, PaletteIndex_Primary) {

	}
	RectangleShape(D2D1_RECT_F rect, PaletteIndex p) :
		Shape(ShapeType_Rectangle, p)
	{
		this->rect = rect;
	}
	D2D1_RECT_F rect;
};

struct EllipseShape : public Shape {
	EllipseShape():Shape(ShapeType_Ellipse, PaletteIndex_Primary)
	{}
	EllipseShape(D2D1_ELLIPSE ellipse, PaletteIndex p = PaletteIndex_Primary)
		:Shape(ShapeType_Ellipse, p)
	{
		this->ellipse = ellipse;
	}

	D2D1_ELLIPSE ellipse;

};

The OnRender() method has now been modified to reflect the new struct hierarchy and now has additional code for rendering text.

switch ((*current)->shapeType)
{
	case ShapeType::ShapeType_Rectangle:
	{
		std::shared_ptr r = std::static_pointer_cast(*current);
		_pRenderTarget->FillRectangle(r->rect, brush.Get());
		break;
	}
	case ShapeType_Ellipse:
	{
		std::shared_ptr e = std::static_pointer_cast(*current);
		_pRenderTarget->FillEllipse(e->ellipse, brush.Get());
		break;
	}
	case ShapeType_Text:
	{
		std::shared_ptr t = std::static_pointer_cast(*current);
		if (t->textLayout)
		{
			ComPtr format = _pDefaultFont;
			//_pRenderTarget->DrawTextW(t->text.c_str(), t->text.size(), format.Get(), t->location, brush.Get());
			D2D1_POINT_2F p = { t->location.left, t->location.top };
			_pRenderTarget->DrawTextLayout(p, t->textLayout.Get(), brush.Get());
		}
		break;
	}
	default:
		break;
}

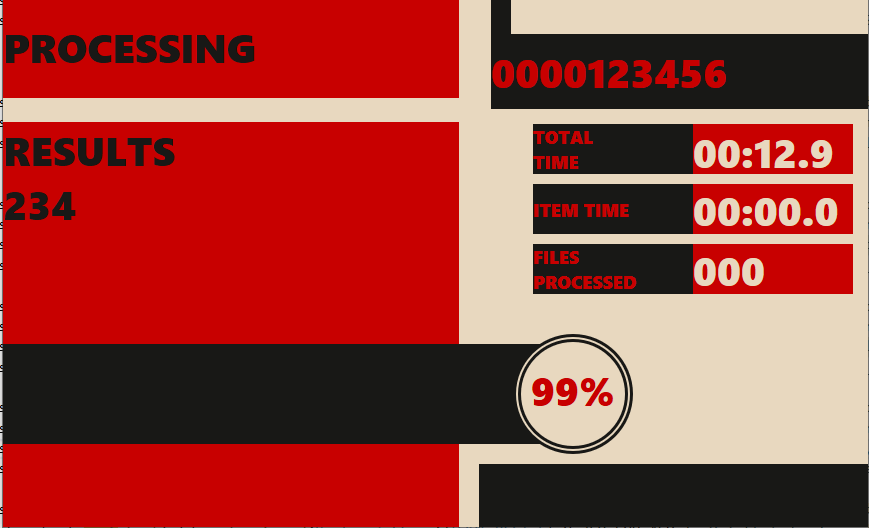

And now the UI looks more complete.

D2D1_UI_With_Text

There are adjustments to be made with the margins on the text and positioning.  Those are going to be ignored until other items are in place.  One could spend hours making adjustments to positioning.  I am holding off on small adjustments until the much larger items are complete.

The complete source code can be found in the following commit on Github.

https://github.com/j2inet/CppAppBase/tree/5189359d50e7cdaee79194436563b45ccd30a88e

There are a few places in the UI where I would like to have vertically rendered text.  A 10 to 15 degree tilt has yet to be applied to the entire UI.  I would also like to be able to display preview images from the items being processed.  My next posts in this series will address: Displaying Images in Direct2D and Applying Transformations in Direct2D.
